Description

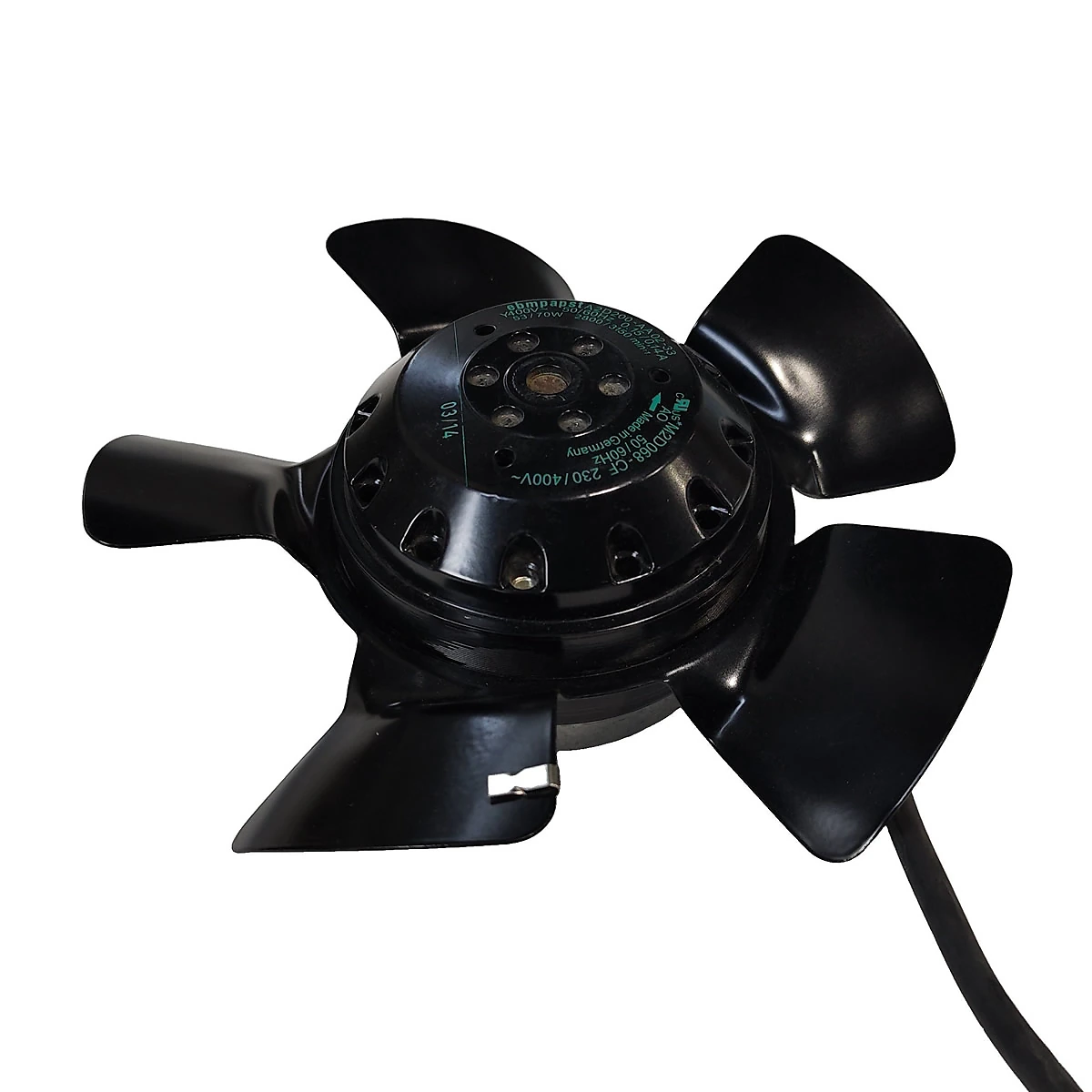

The ebm-papst A2D200-AA02-33 (also known as A2D200AA0233) is an industrial-grade Ø200 mm (7.87 in) AC axial fan engineered with 5 straight A-series blades and an integrated M2D068-CF three-phase external rotor motor. Designed for versatile power configurations, this unit operates across 230 VAC (Delta connection) and 400 VAC (Star connection) at 50 Hz, as well as 400 VAC at 60 Hz, generating nominal speeds of 2800 to 3150 RPM and delivering peak airflow up to 535 CFM (910 m³/h) against static pressures up to 1.2 in H₂O (300 Pa). The mechanical assembly features heavy-duty hot-dip galvanized sheet steel blades, a black-coated rotor, precision dual ball bearings, and IP44 ingress protection for continuous S1 operation in ambient environments up to +75 °C (+167 °F). Electrical interface is established via a lateral 7-conductor AWG 20 lead wire harness with crimped splices, backed by CE, UL 1004-1, and CSA C22.2 No. 100 industrial certifications.
Key Features
- Dual-Voltage Three-Phase Topology: Operates on 230 VAC Delta (Δ) or 400 VAC Star (Y) wiring across 50/60 Hz industrial power networks.
- Galvanized Steel Aerodynamic Impeller: Equipped with five straight A-series sheet steel blades finished with hot-dip galvanization for superior corrosion resistance.
- Robust External Rotor Motor: Powered by an integrated M2D068-CF ball bearing motor rated for continuous S1 duty and flexible shaft orientations.
- High-Pressure Air Delivery: Delivers up to 535 CFM (910 m³/h) with maximum back pressure capabilities of 300 Pa (1.2 in H₂O).
- Industrial Ingress & Environmental Protection: Features IP44 sealing, H0+ moisture rating, rotor-side condensation drainage holes, and Class B winding insulation.
- Certified Electrical Safety: Complies with EN 60335-1 safety standards alongside UL 1004-1 and CSA C22.2 No. 100 North American industrial approvals.
Technical Specifications
| Manufacturer | ebm-papst |
|---|---|
| Manufacturer Part Number (MPN) | A2D200-AA02-33 |
| Alternate Part Number | A2D200AA0233 |
| Integrated Motor Model | M2D068-CF |
| Product Series | A Series (Straight Blades) |
| Product Category | AC Axial Fans |
| Fan / Component Type | Single-Intake AC Axial Fan |
| Phase & Supply Type | 3-Phase AC (3~) |
| Rated Voltage | 230 / 400 VAC |
| Motor Wiring Configurations | Delta (Δ at 230 VAC) / Star (Y at 400 VAC) |
| Frequency | 50 / 60 Hz |
| Speed (RPM) | 2800 RPM (50 Hz) / 3150 RPM (60 Hz) |
| Power Consumption | 53 W (50 Hz) / 70 W (60 Hz) |
| Current Draw | 0.26 A (230 VAC, 50 Hz) / 0.15 A (400 VAC, 50 Hz) / 0.14 A (400 VAC, 60 Hz) |
| Starting Current | 0.81 A (230 VAC, 50 Hz) / 0.47 A (400 VAC, 50 Hz) / 0.45 A (400 VAC, 60 Hz) |
| Airflow | 470 CFM (800 m³/h at 50 Hz) / 535 CFM (910 m³/h at 60 Hz) |
| Max. Back Pressure | 0.8 in H₂O (200 Pa at 50 Hz) / 1.2 in H₂O (300 Pa at 60 Hz) |
| Airflow Direction | Direction ‘V’ (Intake over Struts / Impeller) |
| Fan Size | Ø 200 mm (7.87 in) |
| Number of Blades | 5 |
| Impeller Material | Sheet Steel, Hot-Dip Galvanized |
| Rotor Surface | Painted Black |
| Bearing Type | Maintenance-Free Ball Bearings |
| Direction of Rotation | Counterclockwise (viewed toward rotor) |
| Installation Position | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes | On Rotor Side |
| Operating Mode / Duty Cycle | S1 (Continuous Operation) |
| Weight | 1.6 kg (3.53 lbs) |
| Termination & Cable Specs | Lateral Cable, AWG 20, 7x Crimped Splices |
| Wiring Pinout / Connection | L1 (U1) = Black, L2 (V1) = Blue, L3 (W1) = Brown; U2 = Green, V2 = White, W2 = Yellow; PE = Green/Yellow |
| Direction Change Method | Reversing Two Phases |
| Electrical Protection Class | Class I (with customer protective earth connection) |
| Degree of Protection (IP Rating) | IP44 |
| Insulation Class | Class B |
| Moisture / Environmental Protection Class | H0+ |
| Touch Current (IEC 60990) | < 0.75 mA (Measuring circuit Fig. 4, TN system) |
| Min. Ambient Temperature | -25 °C (-13 °F) |
| Max. Ambient Temperature | +75 °C (+167 °F) |
| Storage / Transport Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Measurement Standard | ISO 5801 Category A / ISO 13347 |
| Standards & Compliance | EN 60335-1, CE, UL 1004-1, CSA C22.2 No. 100, RoHS |
Applications
The ebm-papst A2D200-AA02-33 AC axial fan is purpose-built for heat dissipation across commercial refrigeration condensing units, heat pumps, and industrial evaporators requiring dependable continuous operation. Its rugged galvanized steel construction makes it well-suited for integration into variable frequency drive cabinets, central inverter housings, and heavy machinery control panels exposed to elevated thermal and environmental loads. Additionally, OEM engineers deploy this motorized impeller assembly within air handling ductwork, precision cooling modules, and transport climate systems to maintain balanced thermal management.
