Description

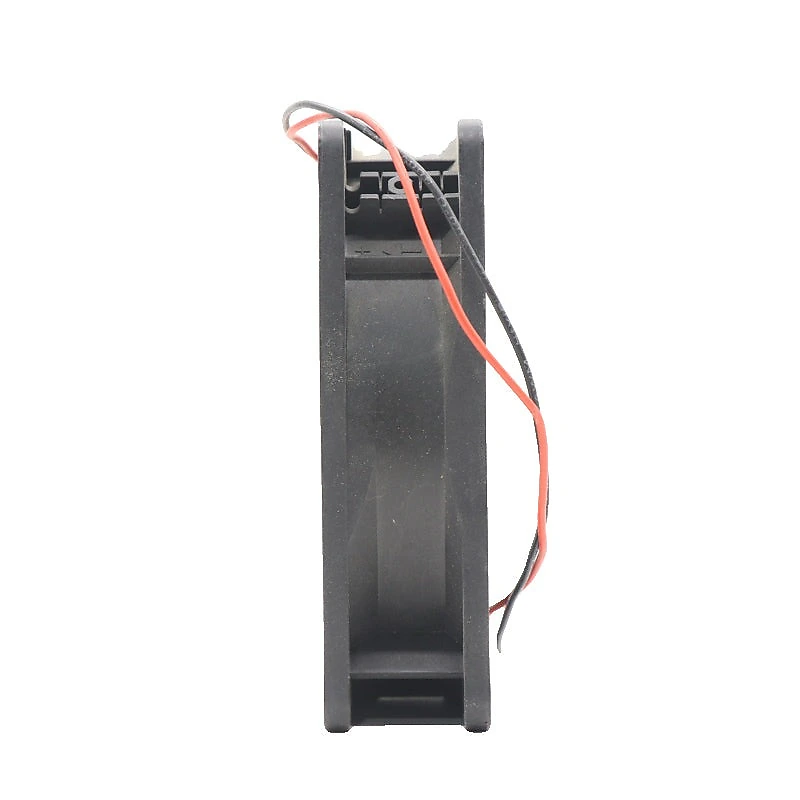

The ebm-papst 4314HR is an industrial-grade compact DC tubeaxial fan engineered in a standard 119 x 119 x 32 mm (4.69 x 4.69 x 1.26 in) plastic frame with an air outlet over struts orientation. Operating on a nominal 24 VDC supply across a flexible 12 to 27 VDC range, the unit delivers a robust airflow of 129.5 CFM (220.0 m³/h) and static back pressure up to 0.498 in H₂O (124 Pa) at 3,650 RPM while consuming 10.8 W. Designed for continuous-duty electronics cooling, it features a heavy-duty ball bearing system, an integrated reverse-polarity protection diode, and an electronic auto-restart locked rotor mechanism. Electrical interconnection is established via 310 mm stranded AWG 22 flying lead wires, ensuring seamless integration into mission-critical power and control systems.
Key Features
- Aerodynamic Airflow Delivery: Generates up to 129.5 CFM (220 m³/h) and 124 Pa static pressure for densely packed thermal systems.
- Precision Ball Bearings: Heavy-duty dual ball bearing system permits universal mounting shaft orientation with extended operational service life.
- Integrated Circuit Protection: Features automated cyclic locked-rotor restart protection alongside an internal diode for complete reverse polarity safeguarding.
- Compact Lightweight Architecture: Reinforced fiberglass-reinforced plastic frame and impeller deliver high structural durability at an ultralight 0.220 kg.
- Global Industrial Compliance: Certified to UL 507, CSA C22.2, CE, EAC, and RoHS directives for dependable international deployment.
Technical Specifications
| Manufacturer | ebm-papst |
|---|---|
| Manufacturer Part Number (MPN) | 4314HR |
| Material / Part Code | 9294305335 |
| Internal Identification Code | VWC0119XUJAS |
| Product Series | 4300 |
| Product Category | DC Axial Fans |
| Fan / Component Type | DC Tubeaxial Fan |
| Phase & Supply Type | DC |
| Nominal Voltage | 24 VDC |
| Operating Voltage Range | 12.0 to 27.0 VDC |
| Rated Speed | 3,650 RPM |
| Rated Power Consumption | 10.8 W |
| Rated Current Consumption | 450 mA |
| Speed at Min. Voltage (12 VDC) | 2,180 RPM |
| Power Consumption at Min. Voltage (12 VDC) | 2.3 W |
| Current Consumption at Min. Voltage (12 VDC) | 190 mA |
| Speed at Max. Voltage (27 VDC) | 3,900 RPM |
| Power Consumption at Max. Voltage (27 VDC) | 13.8 W |
| Current Consumption at Max. Voltage (27 VDC) | 511 mA |
| Max. Free-Air Flow | 129.49 CFM (220.0 m³/h) |
| Max. Static Pressure | 0.498 in H₂O (124 Pa) |
| Optimal Operating Airflow | 95.35 CFM (162.0 m³/h) |
| Optimal Operating Static Pressure | 0.132 in H₂O (33 Pa) |
| Sound Pressure Level | 52.0 dB(A) |
| Sound Power Level | 6.7 bel(A) |
| Direction of Rotation | Clockwise (looking at rotor) |
| Airflow Direction | Air outlet over struts |
| Dimensions (W × H × D) | 119.0 × 119.0 × 32.0 mm (4.69 × 4.69 × 1.26 in) |
| Frame & Impeller Material | Plastic |
| Bearing Type | Ball Bearing |
| Installation / Mounting Position | Any (horizontal or vertical) |
| Max. Mounting Torque | 20 N·cm (ISO 4762 M4 degreased) |
| Weight | 0.220 kg (0.485 lbs) |
| Termination & Cable Specs | 2 Flying Leads, AWG 22, Length 310 mm (±10 mm) |
| Lead Wire Insulation Diameter | 1.70 mm |
| Wiring Pinout | Red = +UB (Positive), Black = -GND (Ground) |
| Motor Protection | Locked Rotor Protection (Auto Restart) |
| Locked Rotor Restart Cycle | t3 / t4 = 0.6 s / 10 s (Block 1: 5 cycles at 0.6 s / 1 s) |
| Reverse Polarity Protection | Rectifying Diode (IF <= 10 mA at UN) |
| Electrical Protection Class | Class III |
| Dielectric Strength (Type Test) | 500 VAC for 1 Min. (at 95% R.H., 25°C) |
| Insulation Resistance | > 10 MΩ at 500 VDC (after 48h at 95% R.H., 25°C) |
| Clearance & Creepage Distance | 1.0 mm / 1.2 mm |
| Pollution Degree | Pollution Degree 2 (DIN EN 60664-1) |
| Operating Temperature Range | -10 °C to +55 °C (14 °F to 131 °F) |
| Storage Temperature Range | -40 °C to +80 °C (-40 °F to 176 °F) |
| Service Life (L10 at 40°C) | 35,000 Hours |
| Climatic & Environmental Standard | DIN EN 60068-2-30 (Cyclic Humid Heat, 6 Cycles), DIN EN 60068-2-68 (Dust) |
| Agency Approvals | CE, EAC, UL (UL507 / E38324), CSA (C22.2 No. 113), RoHS |
Applications
The ebm-papst 4314HR compact axial fan is deployed across industrial automation control cabinets, programmable logic controller enclosures, and motor drive assemblies. It provides critical forced-air convection for variable frequency drive heatsinks, uninterruptible power supply modules, telecom rectifiers, and network server chassis. In OEM machine engineering, this model serves as standard cooling equipment for medical imaging devices, automated test instrumentation, and commercial switchgear assemblies.
