Description

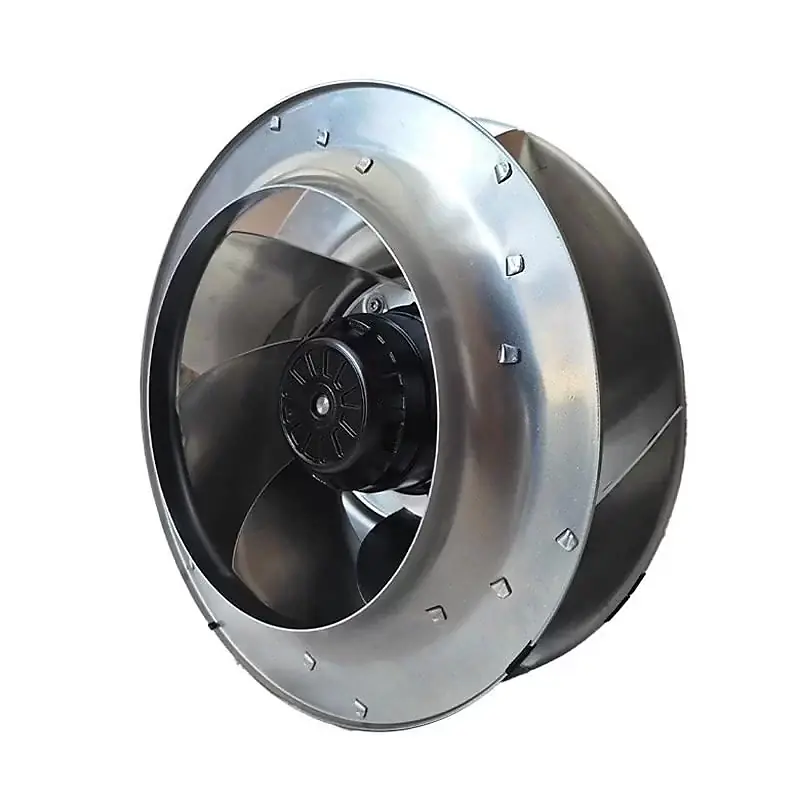

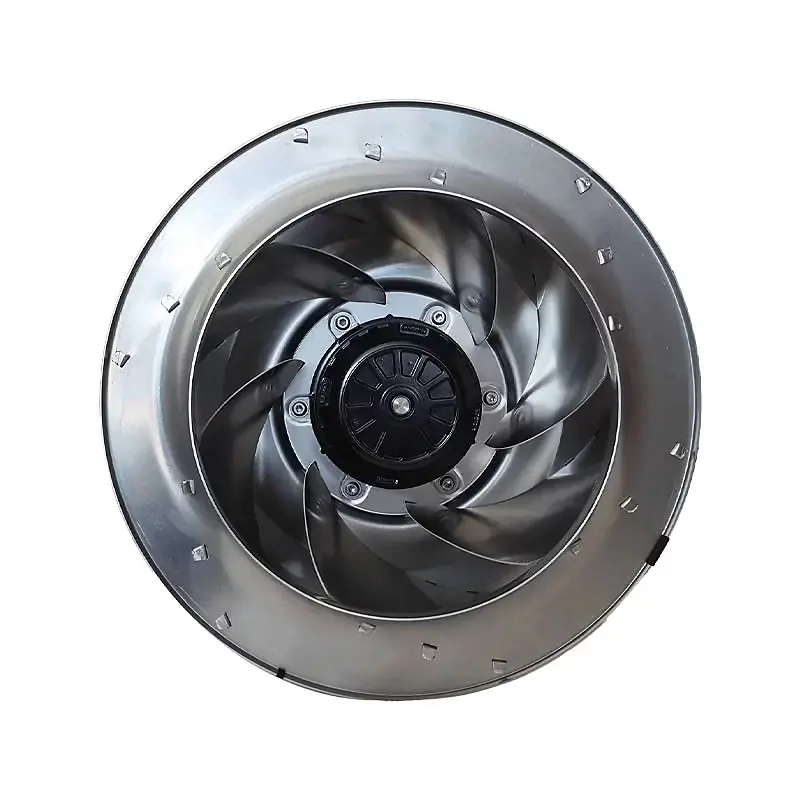

The ebm-papst R4E400-AR05-06 (also known as R4E400AR0506) is an industrial single-inlet, backward-curved AC motorized centrifugal impeller powered by an integrated M4E094-FA external rotor motor with an overall diameter of Ø400 mm (15.75 in). Engineered for high-aerodynamic-efficiency ventilation plenums, it operates on single-phase 230 VAC (50/60 Hz) to deliver up to 3535 m³/h (2080 CFM) and static pressures up to 550 Pa (2.21 in H₂O). The unit features a rugged 6-blade sheet aluminum impeller, dual maintenance-free precision ball bearings, and an 8 µF run capacitor circuit configured for continuous S1 operation. Comprehensive environmental shielding includes an IP54 ingress protection rating, Class F winding insulation, and internal thermal overload protection wired via a heat-resistant 6-conductor silicone lead.
Key Features
- Aerodynamic Impeller Geometry: Heavy-duty 6-blade backward-curved sheet aluminum impeller engineered for high static pressure and non-overloading air handling performance.
- M4E094 External Rotor Motor: Single-phase permanent split capacitor motor delivering high torque density and stable continuous S1 operation at all speeds.
- Robust Environmental Sealing: Rated to IP54 ingress protection with F4-1 environmental classification and corrosion-resistant black-painted external rotor surface.
- Integrated Thermal Protection: Factory-fitted thermal overload protector with basic insulation safely disconnects power during excessive winding temperatures or mechanical lockups.
- Dual Precision Ball Bearings: Sealed maintenance-free industrial bearing system permits dependable continuous operation across horizontal or vertical mounting orientations.
- Flexible Silicone Harness: Factory-installed silicone 6G 0.5 mm² multi-conductor cable with crimped splices ensures thermal durability in harsh ambient environments.
Technical Specifications
| Manufacturer | ebm-papst |
|---|---|
| Manufacturer Part Number (MPN) | R4E400-AR05-06 |
| Alternate Part Number | R4E400AR0506 |
| Item Number | 11085-5-9980 |
| Integrated Motor Model | M4E094-FA |
| Product Series | R4E400 |
| Product Category | AC Centrifugal Fans |
| Fan / Component Type | Single-Intake Backward-Curved Motorized Impeller (Unhoused) |
| Phase & Supply Type | 1~ Single-Phase AC |
| Rated Voltage | 230 VAC |
| Frequency | 50 / 60 Hz |
| Speed (RPM) | 1355 RPM (50 Hz) / 1480 RPM (60 Hz) [Max Load]; 1380 RPM (50 Hz) / 1565 RPM (60 Hz) [Free Air] |
| Power Consumption | 375 W (50 Hz) / 540 W (60 Hz) [Max Load] |
| Rated Current | 1.75 A (50 Hz) / 2.40 A (60 Hz) [Max Load] |
| Starting Current | 3.7 A (50 Hz) / 3.3 A (60 Hz) |
| Run Capacitor | 8 µF / 400 VDB (Safety Protection Class S0, EN 60252-1 / CE) |
| Max. Airflow (Free Air) | 1860 CFM (3165 m³/h) @ 50 Hz / 2080 CFM (3535 m³/h) @ 60 Hz |
| Max. Static Pressure | 1.61 in H₂O (400 Pa) @ 50 Hz / 2.21 in H₂O (550 Pa) @ 60 Hz |
| Min. Back Pressure | 0 Pa (0 in H₂O) |
| Fan Size | 400 mm (15.75 in) |
| Number of Blades | 6 |
| Impeller Material | Sheet Aluminum |
| Rotor Surface | Painted Black |
| Direction of Rotation | Clockwise, viewed toward rotor |
| Motor Bearing | Maintenance-free dual ball bearings |
| Installation Position | Any (horizontal or vertical) |
| Condensation Drainage Holes | None |
| Operating Mode / Duty Cycle | S1 (Continuous operation) |
| Max. Screw Insertion Depth | 12 mm (0.47 in) |
| Weight | 7.0 kg (15.43 lbs) |
| Termination & Cable Specs | Silicone cable 6G 0.5 mm², 6x crimped splices |
| Wiring Pinout / Connection | TOP (2x gray), U1 (blue), Z (brown), U2 (black), PE (green/yellow) |
| Compatible Inlet Ring (Accessory) | 54476-2-4013 (optional, not included) |
| Motor Protection | Thermal overload protector (TOP) with basic insulation |
| Touch Current (IEC 60990) | <= 3.5 mA (Measuring circuit Fig. 4, TN system) |
| Electrical Protection Class | Class I (with customer connection of protective earth) |
| Insulation Class | Class F |
| Ingress Protection (IP) | IP54 |
| Moisture / Environmental Class | F4-1 |
| Operating Temperature Range | -40°C to +60°C (-40°F to +140°F) @ 50 Hz / -40°C to +50°C (-40°F to +122°F) @ 60 Hz |
| Storage / Transport Temperature | -40°C to +80°C (-40°F to +176°F) |
| Standards & Compliance | EN 60034-1 (2010), CE, EAC, CCC, RoHS |
Applications
The ebm-papst R4E400-AR05-06 unhoused motorized impeller is specifically developed for ducted air handling units (AHUs), modular air filtration banks, and precision computer room air conditioners (CRAC/CRAH). Its high-efficiency backward-curved pressure profile makes it suitable for cleanroom Fan Filter Units (FFUs), commercial heat recovery ventilation (HRV) systems, and fume exhaust plenums. It also serves as a direct drop-in replacement for retrofitting roof-mounted industrial exhausters, industrial dehumidifiers, and electrical power inverter cooling chambers.
