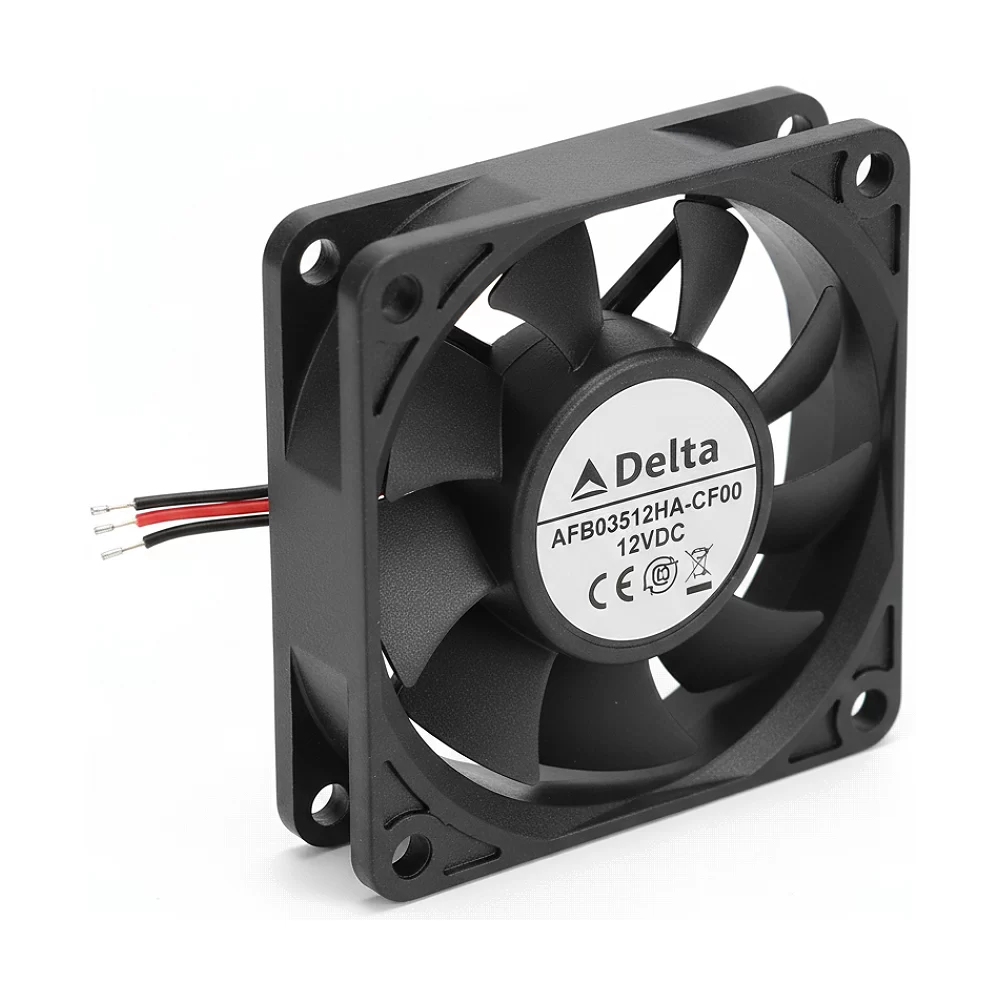

Description
The Delta AFB03512MA-CF00 (also known as AFB03512MACF00) is a compact, high-reliability brushless DC axial cooling fan measuring 35 × 35 × 10 mm (1.38 × 1.38 × 0.39 in) designed for micro-thermal management in tight enclosures. Operating on a nominal 12 VDC supply across a 4.5 to 13.2 VDC range, this unit delivers an airflow of 4.27 CFM (7.26 m³/h) and static pressure of 0.076 in H₂O (19.0 Pa) at 5800 RPM while consuming merely 0.60 W. Engineered with a precision dual-ball bearing assembly and UL 94V-0 flame-retardant plastic housing and impeller, it ensures sustained L10 reliability of 30,000 hours at 40°C. Electrical integration is streamlined via three 150 mm UL 1061 AWG #26 lead wires providing power, ground, and an open-collector frequency generator (FG) tachometer speed-monitoring signal.
Key Features
- Dual Ball Bearing Architecture: Sustains an L10 operating life of 30,000 hours at 40°C and 65% relative humidity.
- Frequency Generator Tachometer Output: Features a dedicated open-collector third-wire FG output delivering 2 pulses per revolution for system diagnostics.
- Compact Low-Profile Micro Frame: Ultra-slim 35x35x10mm envelope optimizes airflow in space-constrained embedded enclosures and compact 1U server blade configurations.
- Comprehensive Circuit Safety Protection: Integrates reverse polarity protection and 96-hour locked-rotor impedance protection to prevent winding overheating under stall conditions.
- Flame-Retardant Thermoplastic Build: Constructed with UL 94V-0 rated housing and impeller materials, complying with strict industrial flammability requirements.
Technical Specifications
| Manufacturer | Delta |
|---|---|
| Manufacturer Part Number (MPN) | AFB03512MA-CF00 |
| Alternate Part Number | AFB03512MACF00 |
| Safety Model Number | AFB03512MA-C |
| Product Series | AFB Series |
| Product Category | DC Axial Fans |
| Fan / Component Type | Brushless DC Axial Cooling Fan |
| Phase & Supply Type | Single-Phase DC |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 4.5 to 13.2 VDC |
| Rated Current | 0.05 A (Average) |
| Max. Current Draw | 0.08 A (Label Safety Current) |
| Rated Input Power | 0.60 W (Average) |
| Max. Input Power | 0.96 W |
| Speed (RPM) | 5800 RPM (±20%) |
| Airflow | 4.27 CFM (7.26 m³/h) |
| Min. Airflow | 3.41 CFM (5.80 m³/h) |
| Static Pressure | 0.076 in H₂O (19.0 Pa) |
| Min. Static Pressure | 0.048 in H₂O (12.16 Pa) |
| Noise Level | 17.0 dB(A) (Max. 22.0 dB(A)) |
| Airflow Direction | Axial (Intake over struts / nameplate discharge) |
| Dimensions (L × H × D) | 35.0 × 35.0 × 10.0 mm (1.378 × 1.378 × 0.394 in) |
| Mounting Hole Pitch | 29.0 × 29.0 mm (1.142 × 1.142 in) |
| Mounting Hole Diameter | 4 × Ø 3.2 ± 0.3 mm (4 × Ø 0.126 in) |
| Housing Material | Thermoplastic Plastic (UL 94V-0) |
| Impeller Material | Thermoplastic Plastic (UL 94V-0) |
| Bearing Type | Dual Ball Bearings |
| Direction of Rotation | Clockwise (viewed from nameplate side) |
| Weight | 10 g (0.022 lbs) |
| Termination & Cable Specs | 3-Wire Leads, UL 1061 AWG #26, 150.0 ± 10.0 mm (5.91 ± 0.39 in) stripped 10.0 mm (0.39 in) |
| Wiring Pinout / Connection | Red Wire: Positive (+), Black Wire: Negative (-), Blue Wire: FG Signal (Tachometer) |
| Control / Signal Features | Frequency Generator (FG) Open-Collector Tachometer Output (4 Poles, 2 Pulses/Rev, VCE(sat) 0.5V Max, Ic 5mA Max) |
| Motor Protection | Impedance Protected (Locked Rotor Flame Protection up to 96 Hours), Reverse Polarity Protected |
| Insulation Class | UL: Class A |
| Insulation Resistance | 10 MΩ min. at 500 VDC (between frame and positive terminal) |
| Dielectric Strength | 5 mA max. at 500 VAC 50/60 Hz for 1 minute (between frame and positive terminal) |
| Operating Temperature | -10°C to +70°C (14°F to 158°F) |
| Storage Temperature | -40°C to +75°C (-40°F to 167°F) |
| Operating Humidity | 5% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Service Life (L10) | 30,000 Hours continuous operation at 40°C, 65% RH |
| Standards & Compliance | UL, cULus, CE, RoHS Compliant |
Applications
The Delta AFB03512MA-CF00 DC axial fan is engineered for localized spot cooling within space-restricted network routers, 1U blade servers, and compact embedded industrial motherboards. It provides quiet, vibration-free heat dissipation across telecom optical transceivers, surveillance NVR enclosures, and automated robotic controller interface modules. Additionally, this miniature fan serves as a dependable drop-in thermal replacement for medical point-of-care diagnostics equipment and laboratory instrumentation needing continuous tachometer feedback.
